what is Lap joint of piston ring

We use Caterpillar C15/3406 engine piston ring 1W8922 OR (1777496/1343761)/1765749/1899771 to be a sample to explain

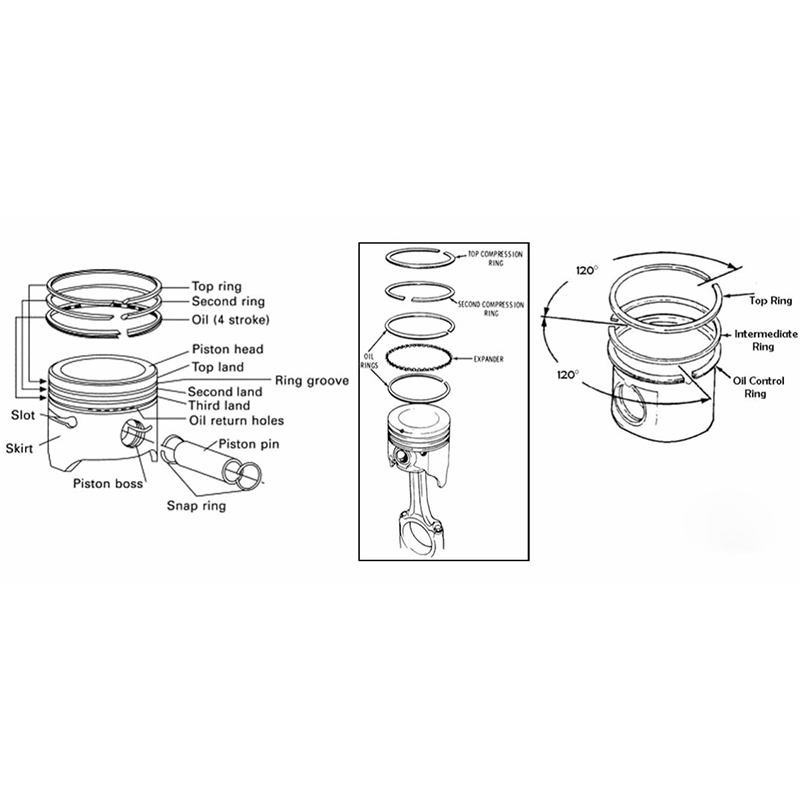

piston and piston ring

In an internal combustion engine, piston rings are essential components that help seal the combustion chamber and maintain efficient engine operation. A piston ring pairing refers to the arrangement and configuration of piston rings installed on a piston.

Typically, a piston has multiple rings installed in grooves around its circumference. The number and arrangement of rings can vary depending on the engine design, but a common configuration consists of three rings: two compression rings and one oil control ring.

Compression Rings:
The two compression rings are responsible for sealing the combustion chamber, preventing the leakage of gases between the piston and the cylinder wall. These rings are positioned in separate grooves close to the top of the piston. They create a tight seal against the cylinder wall while allowing for the reciprocating motion of the piston.

Oil Control Ring:
The oil control ring is located in a lower groove on the piston and is responsible for regulating the amount of oil on the cylinder wall. Its primary function is to scrape excess oil off the cylinder wall during the piston’s downward stroke, while also providing lubrication to prevent excessive wear.

The specific pairing refers to the arrangement and order of the rings. For example, a common pairing arrangement for a piston might be one compression ring at the top, followed by the oil control ring, and then the second compression ring closest to the bottom. However, different engine manufacturers may have variations in the ring pairing based on their specific design and requirements.

The choice of piston ring pairing depends on factors such as engine design, performance objectives, and operating conditions. Optimizing the ring pairing helps achieve proper compression, reduced oil consumption, efficient lubrication, and effective sealing, resulting in improved engine performance and longevity.

In frankly say: When assembling piston rings, the opening direction should be staggered, generally 90 degrees, 120 degrees or 180 degrees apart.
