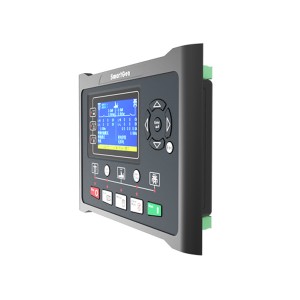

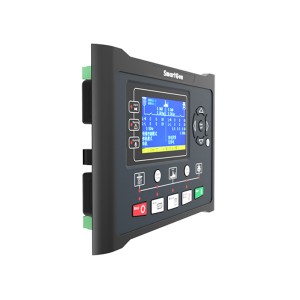

HGM9560 4.3inches TFT-LCD, bus-mains parallel, RS485
|
Item number: |
HGM9560 |
|
Power supply: |
DC8-35V |
|
Product dimension: |
266*182*45(mm) |
|
Plane cutout |
214*160(mm) |
|
Operation temp |
-25 to +70 ℃ |
|
Weight: |
0.95kg |
|
Display |
4.3 inches TFT-LCD (480*272) |
|
Operation panel |
Silicon Rubber |
|
Language |
Chinese & English |
|
Digital Input |
7 |
|
Relay out put |
8 |
|
Analogue input |
|
|
AC system |
1P2W/2P3W/3P3W/3P4W |
|
Alternator Voltage |
(15~360)V(ph-N) |
|
Alternator Frequency |
50/60Hz |
|
Monitor Interface |
RS485 |
|
Programmable Interface |
USB/RS485 |
|
DC Supply |
DC(8～35)V |
HGM9560 Bus Tie Mains Parallel Unit is designed for manual/auto parallel system which composed by gensets and one-way/multi-way mains. It allows automatic start/stop and parallel running function. It fit with LCD display, graphic display, optional Chinese, English and other languages interface, and it is reliable and easy to use.
HGM9560 Bus Tie Mains Parallel Unit has multiple running states when it is parallel with mains: Genset output fixed active power and fixed reactive power; Mains peak lopping; Provide fixed power to mains; Load takeover; No-break return to mains supply.
The powerful 32-bit Microprocessor contained within the unit allows for precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc..Majority parameters can be configured from front panel, and all parameters can be configured by USB interface (or RS485) to adjust via PC. It can be widely used in all types of automatic genset parallel system with compact structure, simple connections and high reliability.
