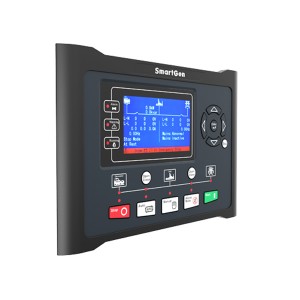

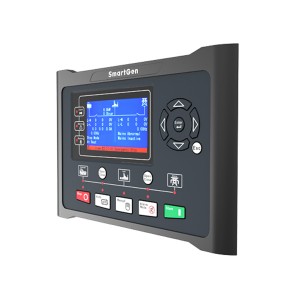

HGM9620 synchronising control

Short Description:

Item number: HGM9620 Power supply: DC8-35V Product dimension: 266*182*45(mm) Plane cutout 214*160(mm) Operation temp -25  to +70 ℃ Weight: 0.95kg Display 4.3 inches TFT-LCD (480*272) Operation panel Silicon Rubber Language Chinese & English Digital Input 8 Relay out put 8 Analogue input 5 AC system 1P2W/2P3W/3P3W/3P4W Alternator Voltage (15~360)V(ph-N) Alternator Frequency 50/60Hz Monitor Interfa...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Item number:

    HGM9620

    Power supply:

    DC8-35V

    Product dimension:

    266*182*45(mm)

    Plane cutout

    214*160(mm)

    Operation temp

    -25  to +70 ℃

    Weight:

    0.95kg

    Display

    4.3 inches TFT-LCD (480*272)

    Operation panel

    Silicon Rubber

    Language

    Chinese & English

    Digital Input

    8

    Relay out put

    8

    Analogue input

    5

    AC system

    1P2W/2P3W/3P3W/3P4W

    Alternator Voltage

    (15~360)V(ph-N)

    Alternator Frequency

    50/60Hz

    Monitor Interface

    RS485

    Programmable Interface

    USB/RS485

    DC Supply

    DC(8~35)V

    HGM96XX series genset controllers are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication). The controller adopts large liquid crystal display (LCD) and selectable Chinese, English or other languages interface with easy and reliable operation.

    HGM96XX controller adopts 32 bits micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc. The majority of parameters can be set using front panel and all the parameters can be set using PC (via USB port) and can be adjusted and monitored with the help of RS485 and ETHERNET ports. Controllers are fitted with Micro SD for real-time operation data recording for convenient browsing and timely fault detection.It can be widely used in a number of automatic genset control system with compact structure, simple connections and high reliability.



    .MORE INFORMATION PLEASE TOWARDS DOWNLOAD THANKS
